Y2 series high power ac motor is one series of high-voltage three-phase asynchronous motor (center height 355-560), which is a compact enclosed cage rotor three-phase asynchronous motor. This series motors can be used to drive various types of machinery, such as ventilation fans, compressors, water pumps, crushers, cutting machines, and other equipment, and can be used as prime movers in coal mines, machinery industries, power plants, and various industrial and mining enterprises.

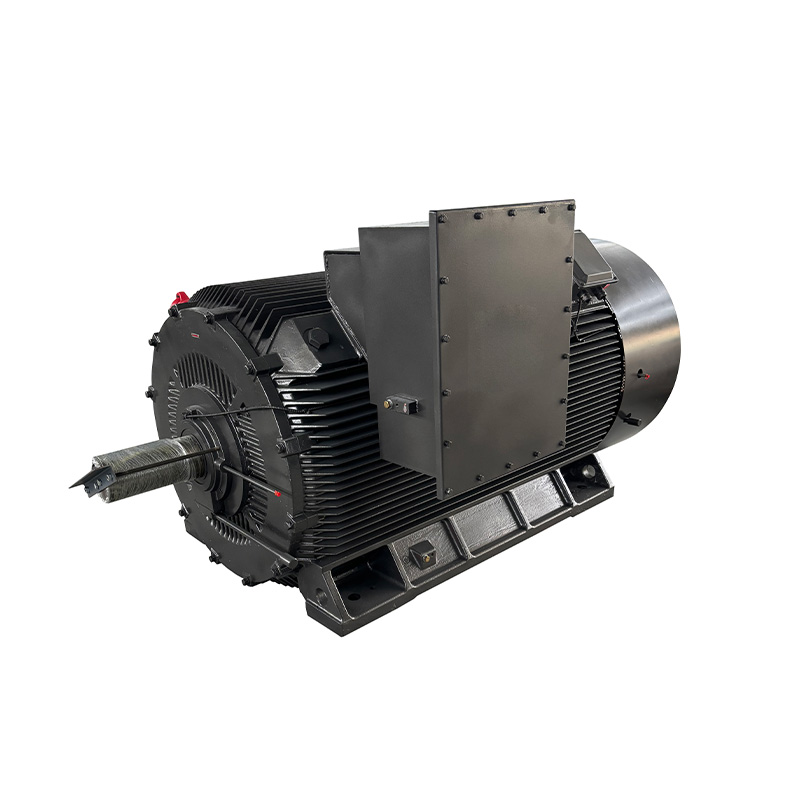

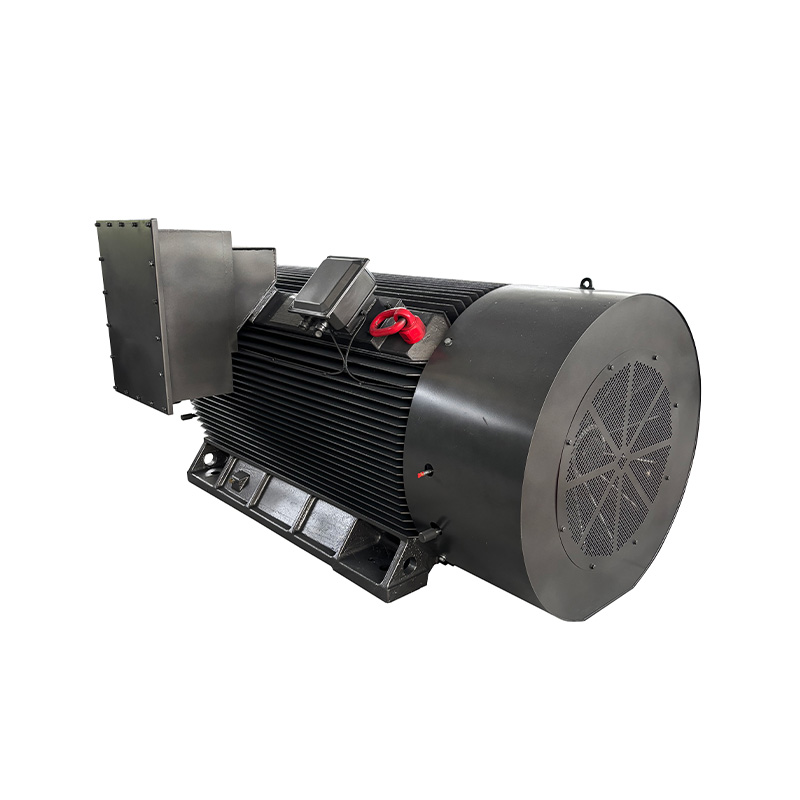

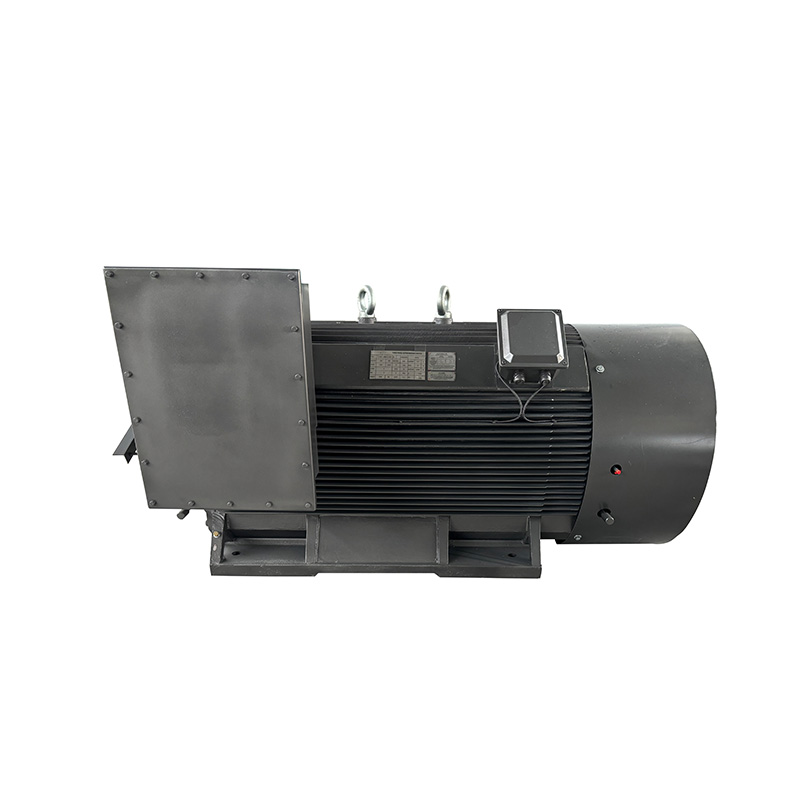

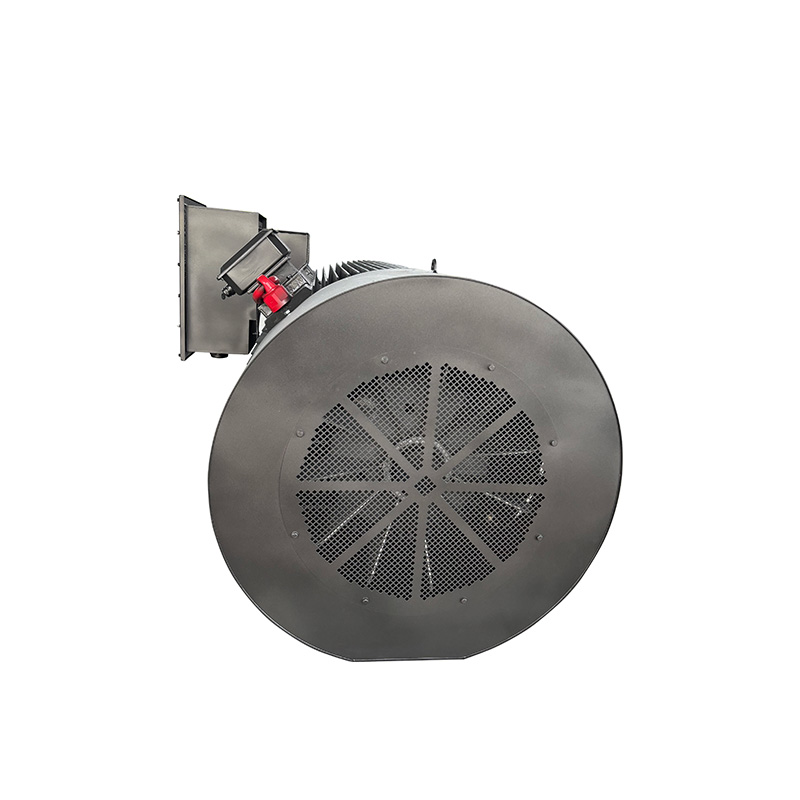

Y2 series high power ac motor

Brief Introduction

Based on the needs of domestic and international markets, our company has developed the Y2 series high power ac motor. Y2 series compact high-voltage three-phase asynchronous motor is the motor of having a wider range of applications, higher efficiency indicators, and larger size for high and low voltage motors . This series motor has combined our company's advanced technology and decades of production experience in producing motors since 1969 .

By adopting new technological methods and materials, the performance indicators of the motor have reached the advanced level abroad. Y2 series high power ac motor has a small volume, heavy weight, compact structure, and occupies small land area, easy installation and maintenance, high protection level, good reliability, high efficiency, saving user costs, low noise, meeting customers' energy-saving and environmental protection requirements.

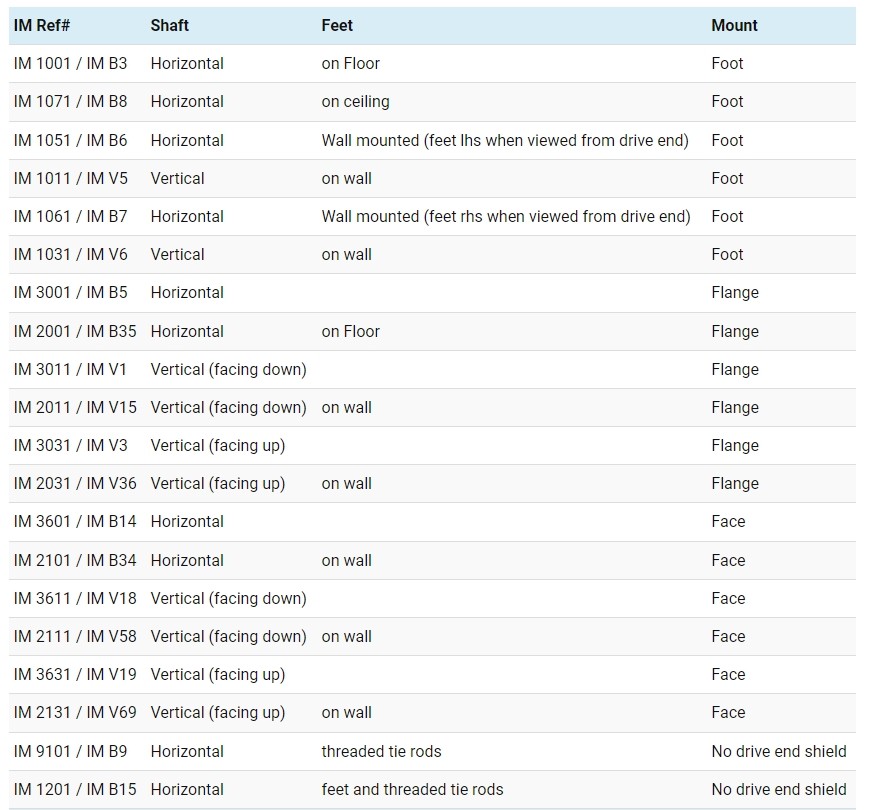

The power supply for Y2 series high power ac motor is a three-phase 50Hz (or 60Hz as needed) power supply with a voltage level of 6kV. It can also be designed as 3kV, 3.3kV, 6.6kV, etc. according to customer needs. The installation method is generally IMB3, but it can also be designed as IMB35, IMV1 (including bearing appropriate axial forces) according to customer needs.

The performance and installation dimensions of this series of motors comply with IEC standards, GB755 standards, and relevant professional technical standards. And our company has passed ISO9001 international quality system certification multiple times, controlling the entire process from ordering, development, manufacturing, inspection, sales, to service in accordance with the requirements of ISO9001 quality system.

Order notice

1. Sliding bearing

The ambient air temperature of electric motors using sliding bearings should not be lower than 0 deg. C

2.Starting requirements

When starting the motor with a load, it is necessary to ensure that the terminal voltage during the motor starting process is not less than 85% of the rated voltage.

The motor is allowed to start continuously twice in actual cold state, or once in hot state. The motor should naturally stop between the two starts, and additional restarts should be carried out after the motor has completely cooled til same as room temperature.

Note: if the load is a reciprocating compressor, ventilation fan with large inertia, or crusher, please indicate it before placing

order.

3.Load connection

Note: The electric motor and the driven load should be driven co-axialy through a coupling. lf the transmission method is belt,chain, gear, etc., please specify it before placing order.

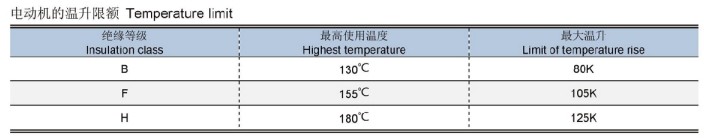

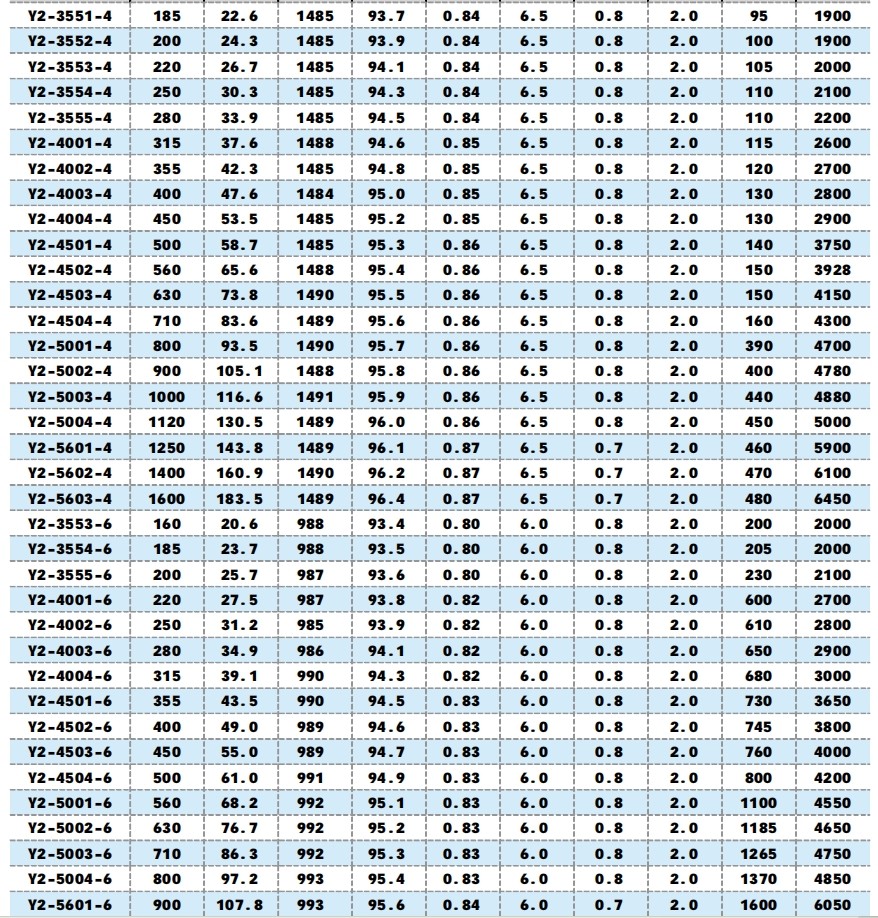

Technical data

Typical application

• Rolling

• Aluminium

• Power plant

• Wood processing

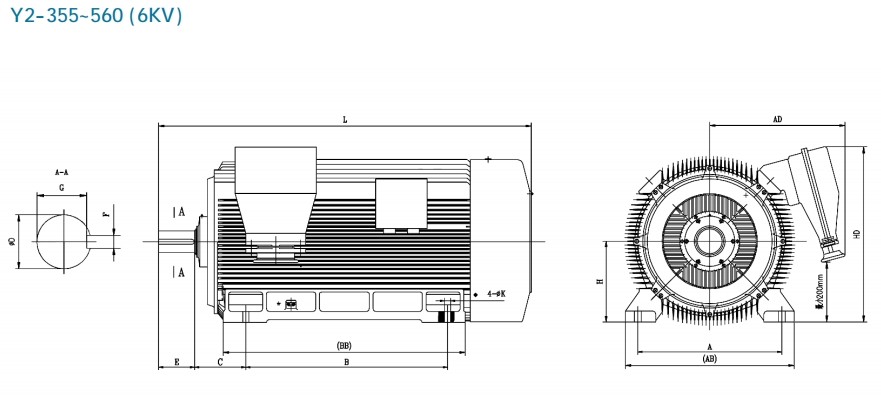

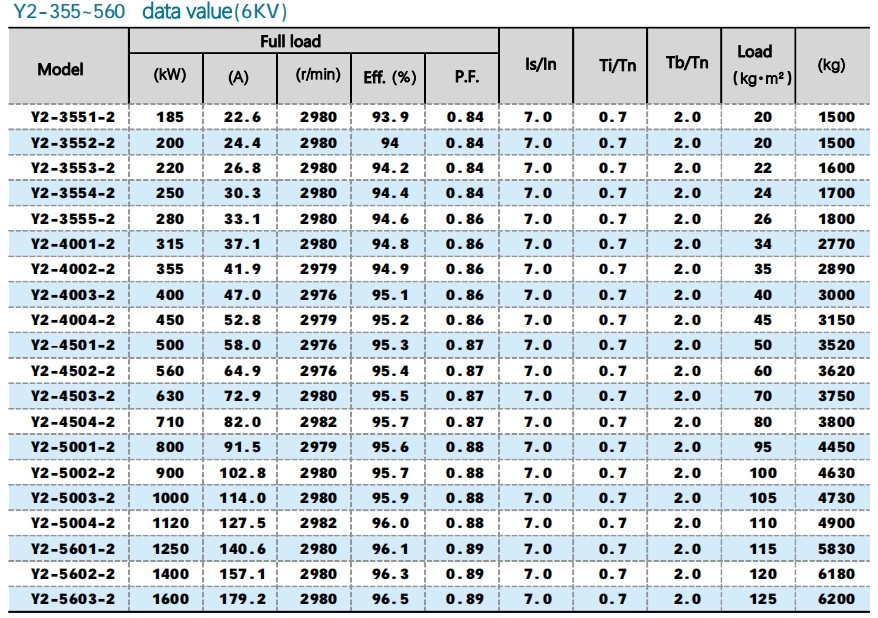

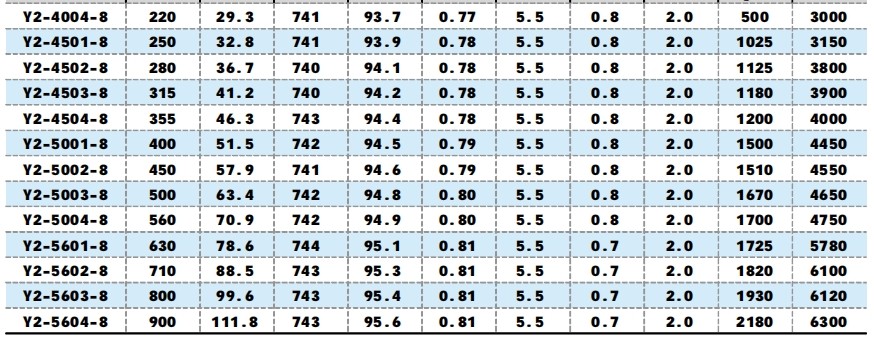

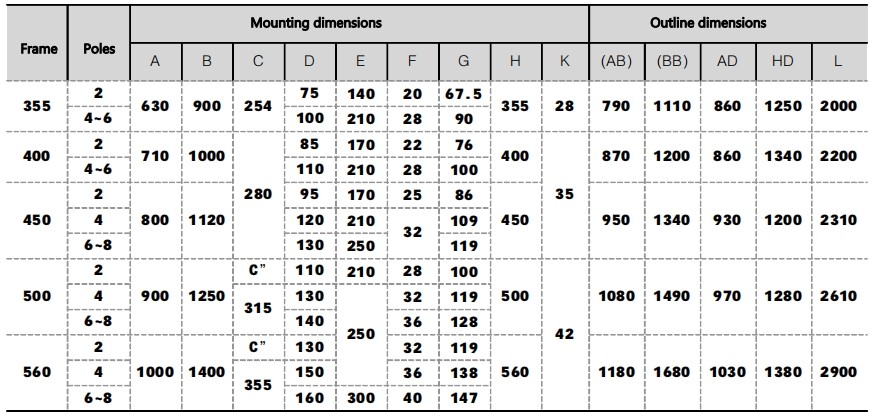

Technical data and dimensions
