PRODUCT

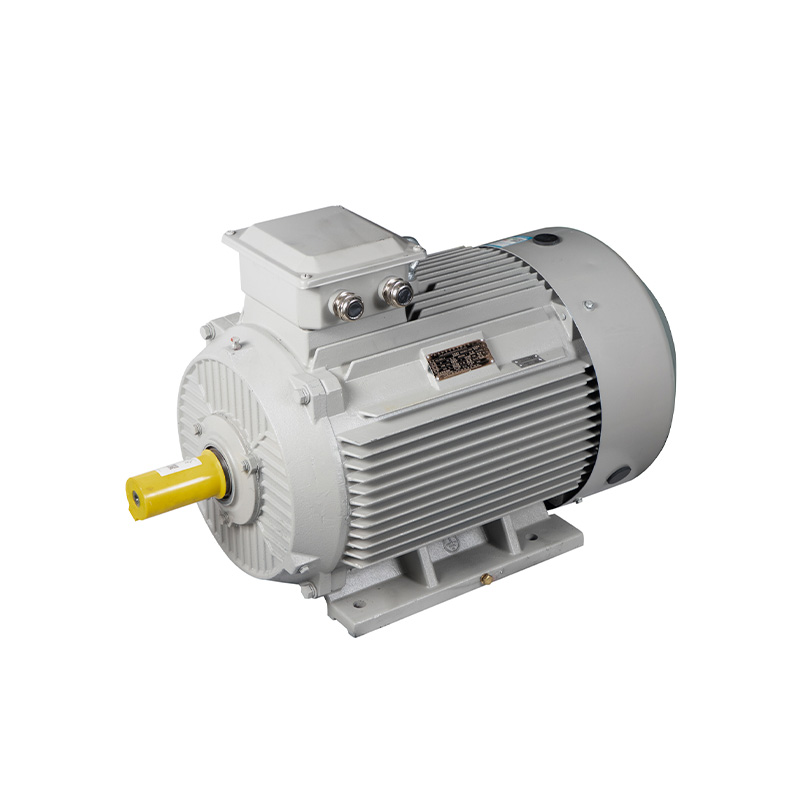

IE5 series ip65 motor

Description：IE5 series ip65 motor is the ultra-high efficiency motor with highest protection grade, which belongs to squirrel cage three phase alternating current motor for general industrial and domestic using.

DOWNLOAD

IE5 series ip65 moto

Brief Introduction

IE5 series ip65 motor,compared with IE3 series or IE4 series cast iron motor, it is with ultra-high efficiency and strictly designated by engineers of some special industries . With the the global appeal for low carbon and environmental protection,this series motor is gradually accepted by users and already realized the energy-saving after comparison, like the factories of pump,fan, compressor, blower, printing,etc. With great energy saving, easy maintenance,strong stability and low noise, it’s already the most popular motor series for end users, especially, in China.

Because of the using of good materials, the cost of IE5 series motors is higher. Because of IP65 protection, which means that motors has the ability to completely prevent dust and water spray.

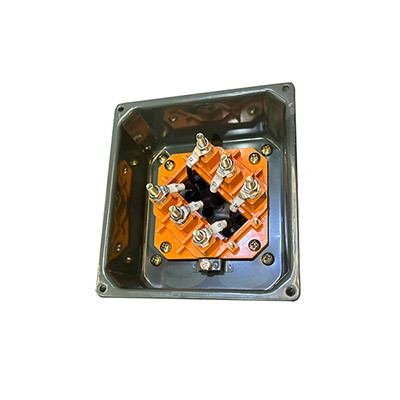

The motor terminal box and design will be done with special treatment. Therefore, IE5 series ip65 motor will also cause motor cost higher and cause motor production longer.

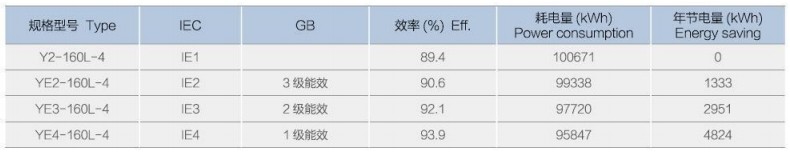

This series motor efficiency indicators meet level 5 energy efficiency, i.e. IE5, which are specified in Chinese standard GB18613-2020 and in international standard IEC60034-30.

Technical Specs

Frame size	H80~H355
Output range(KW)	0.55 to 375
Frequency(Hz)	50/60
Voltage(V)	220/380/400/415/440/550/660/690
Pole	2/4/6/8/10/12
Speed	3000rpm/1500rpm/1000rpm/750rpm/600rpm/500rpm
Enclosure	IP55/IP56/IP65
Cooling	IC411/TEFC
Working duty	S1,S6,S9

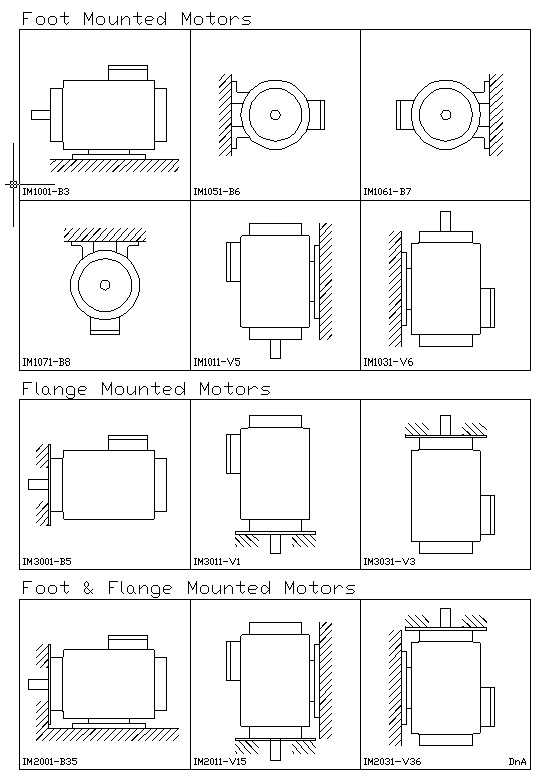

Mounting	foot-IMB3/IM1001;flange-IMB5/IM3001;face-IMB14/IM3601; vertical-IMV1/IM3011;flange-foot:IMB35/IM2001
Standard	IEC60034
Application	pump,fan,compressor,mixer,machine tool,crusher,etc.

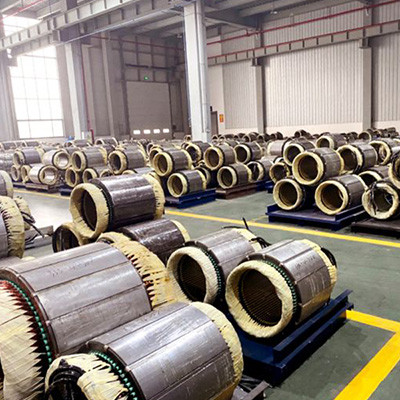

Production Overview


Frame	Stator	Rotor	Metal gland	Packing

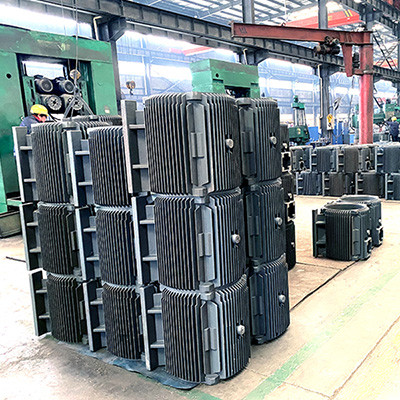

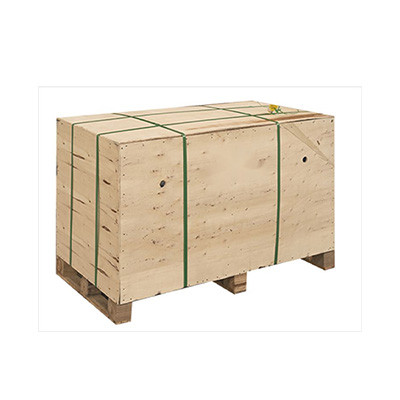

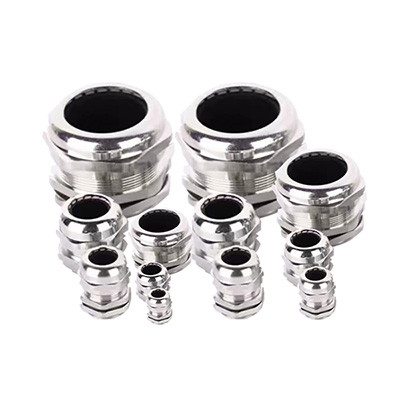

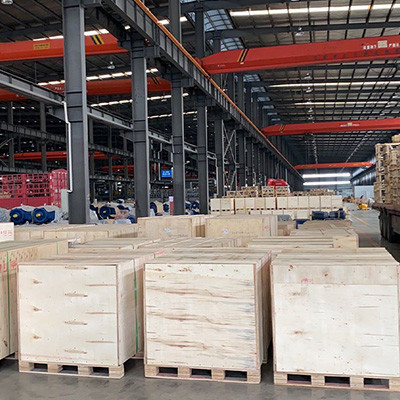

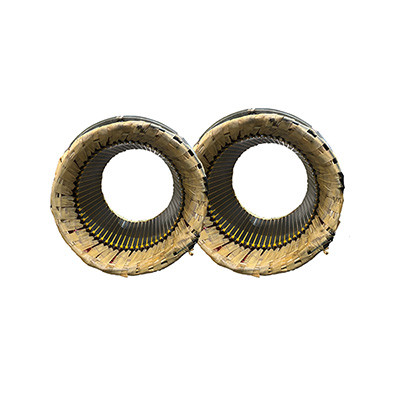

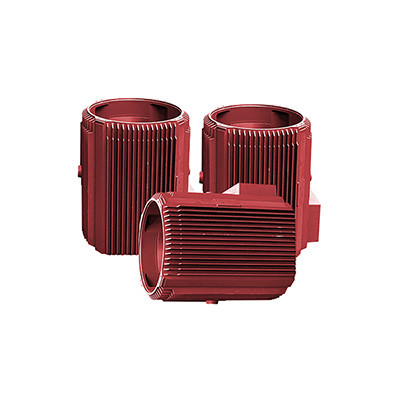

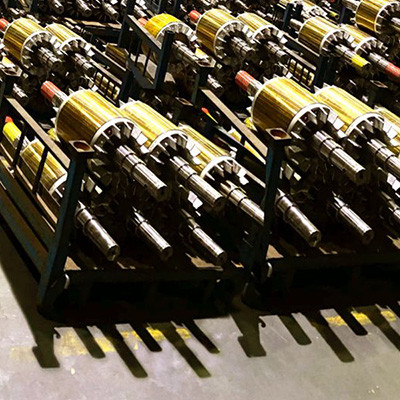

Cast iron casing is the highest demand for all domestic and international markets. Except standard motor mounting IMB3,we can make all kinds of mounting motors,like IMB5, IMB35, IMV1,IMB14,IMV6,etc.	High quality copper is needed to ensure the stator winding in best state, for reaching best motor performance and long working service for end users.	Energy efficiency, this will be ensured by aluminum casting rotor, silicon steel sheet of rotor core and high-accurate machined shaft.	IE5 series ip65 motor, having a series of high standards to inspect the motors from technical parameters, dimensions, parts and external polishing and painting,we are working to improve the overall level of both interior and exterior for electric motors.	This series motor will be packed and fixed specially according to their special mounting method,outline,weights and shipment methods. Each carton case, wooden package or steel rack,putting enough desiccants inside for removing moisture as much as possible is always necessary .

Application

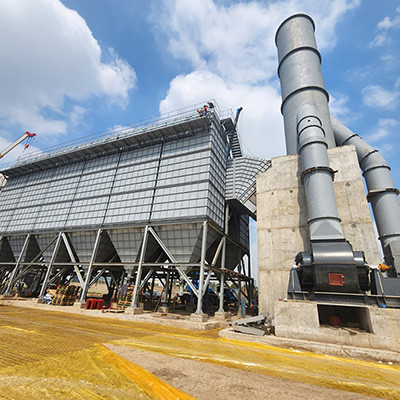

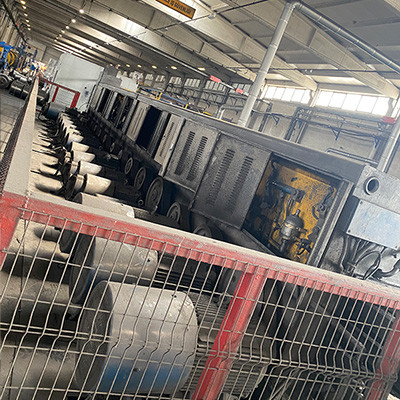

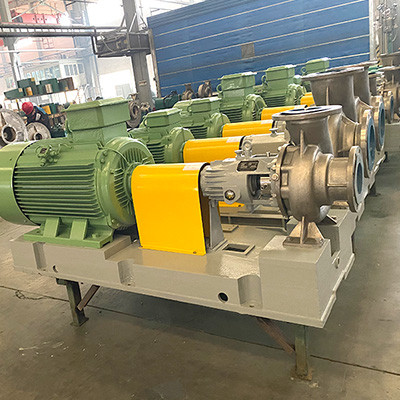

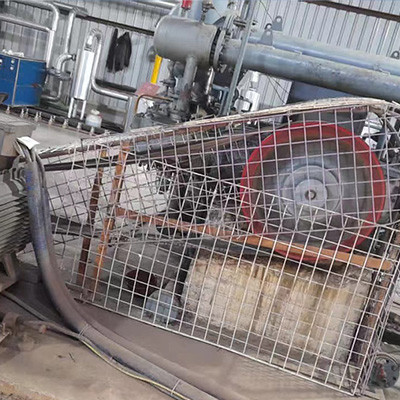

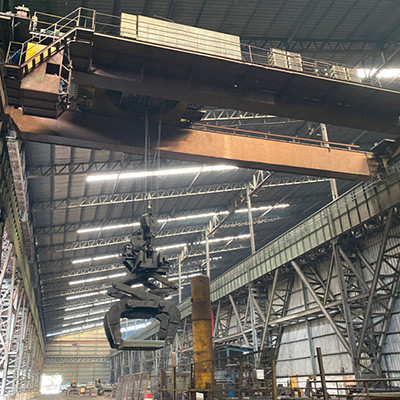

ALUMINIUM	CEMENT	PAPER	PUMP	ROLLING

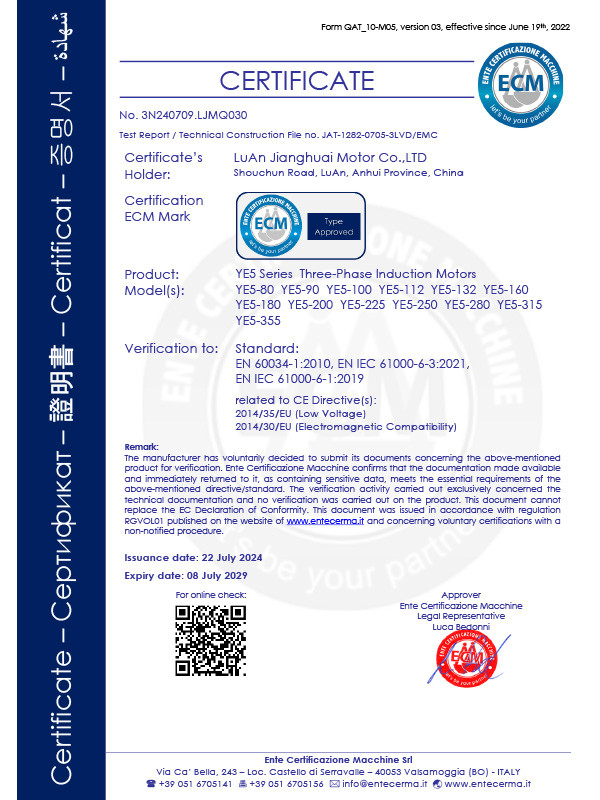

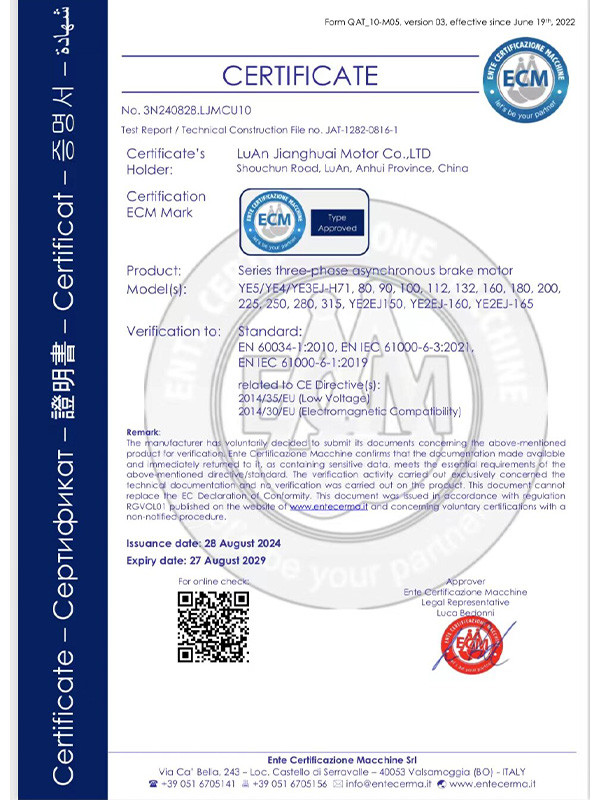

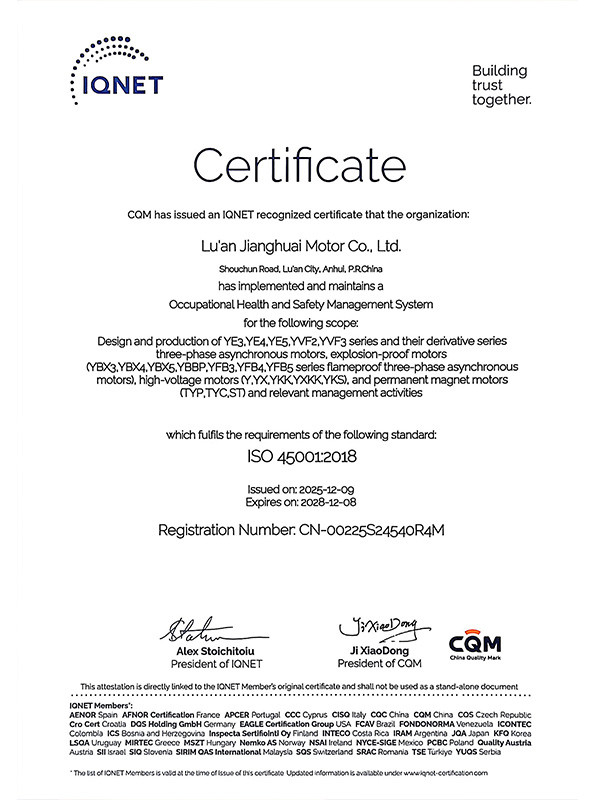

Certificates

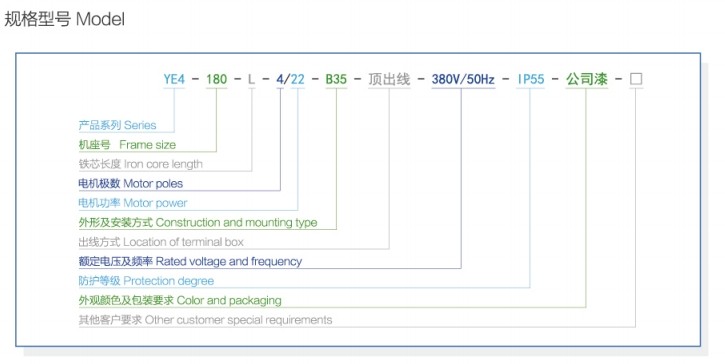

Dimensions and Parts’ codes

FAQ

1. What is the difference between IE3 and IE5?

In June 2021, the Chinese national standard GB18613-2020 "Energy Efficiency Limits and Energy Efficiency Grades for Electric Motors" (new national standard) was officially implemented, listing the international standard IE5 efficiency as the highest level one energy efficiency index for three-phase asynchronous motors in China, and IE3 efficiency as the level three energy efficiency.

2. How efficient is the IE5 motor?

The emergence of IE5 motors aims to achieve more efficient energy consumption control and is an excellent energy-saving method that can utilize energy more efficiently, save users on electricity costs, and ultimately reduce global energy consumption and environmental pollution.

3. What is the IP65 rating of a motor?

IP is an international code used to determine the level of protection. The IP level consists of two numbers, with the first number indicating dust prevention; The second number represents waterproofing, and the larger the number, the better its protection level.

6 means motor can completely prevent dust from entering.

5 means motor has no effect on low pressure injection at any angle.
