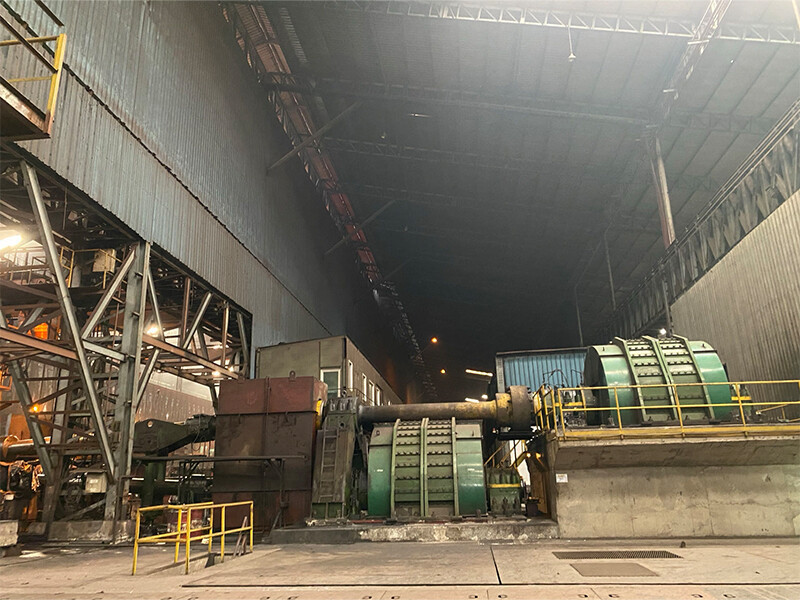

Z4 series ip23 motor is an electric motor which is widely used for production machinery such as large reversible steel mills, mine winches, hotel high-speed elevators, gantry planers, electric locomotives, flame resistant locomotives, urban trams, subway trains, electric bicycles, paper-making and printing machinery, ship machinery, large precision machine tools, and large cranes.Due to its excellent starting and speed regulation performance, DC motors are often used in situations with high requirements for starting and speed regulation.

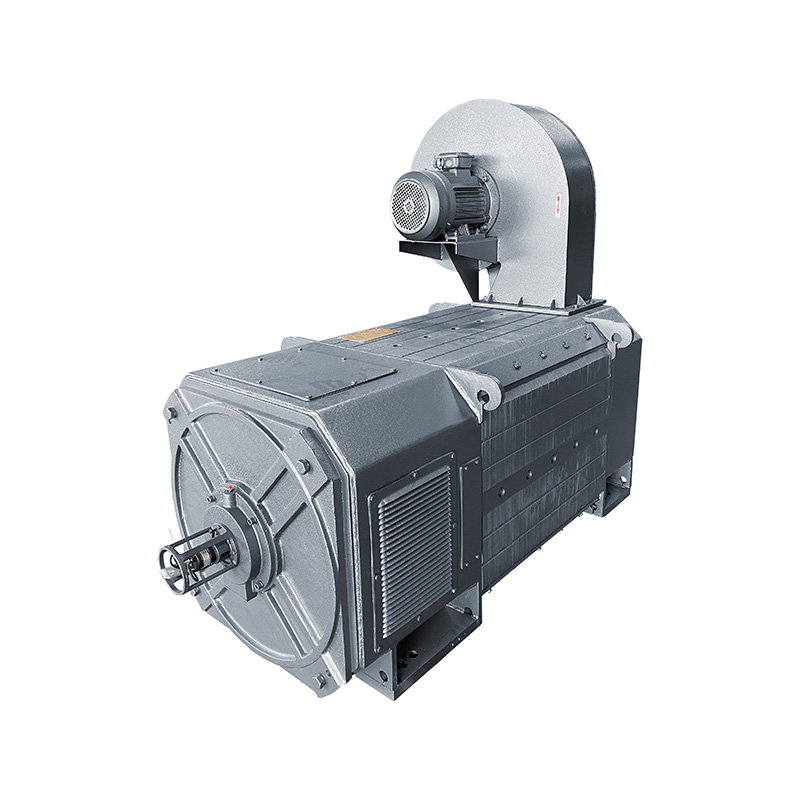

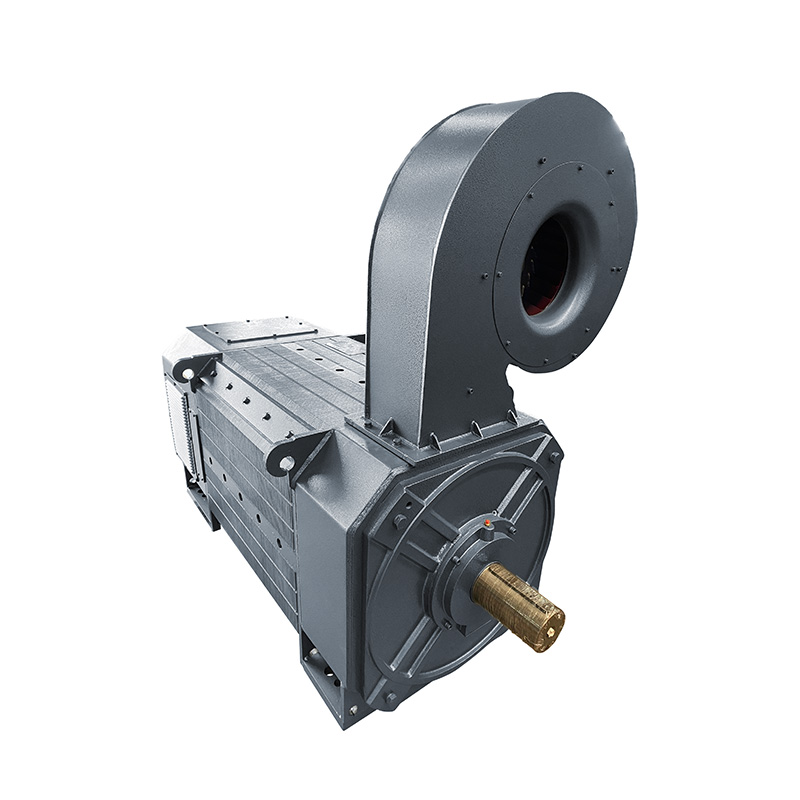

Z4 series ip23 motor

Brief Introduction

The working characteristics of Z4 series ip23 motor refer to the relationship between motor speed and motor torque under different loads. At rated voltage, these motors have higher rotational speed and lower torque under no-load conditions.Under load conditions, the motor speed will decrease while the torque will increase until it reaches the maximum torque point, at which point the speed is at its lowest. As the load continues to increase, the motor speed continues to decrease, but the torque begins to decrease until it reaches zero and the motor stops rotating.

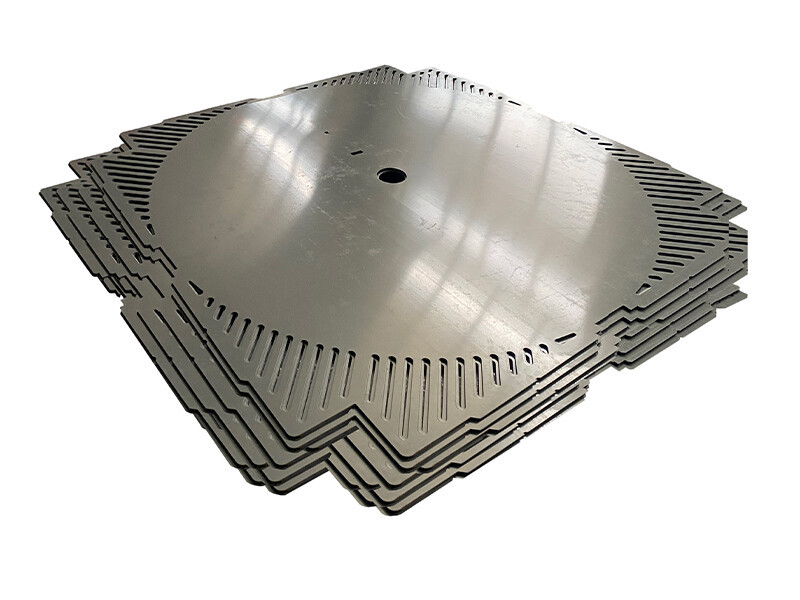

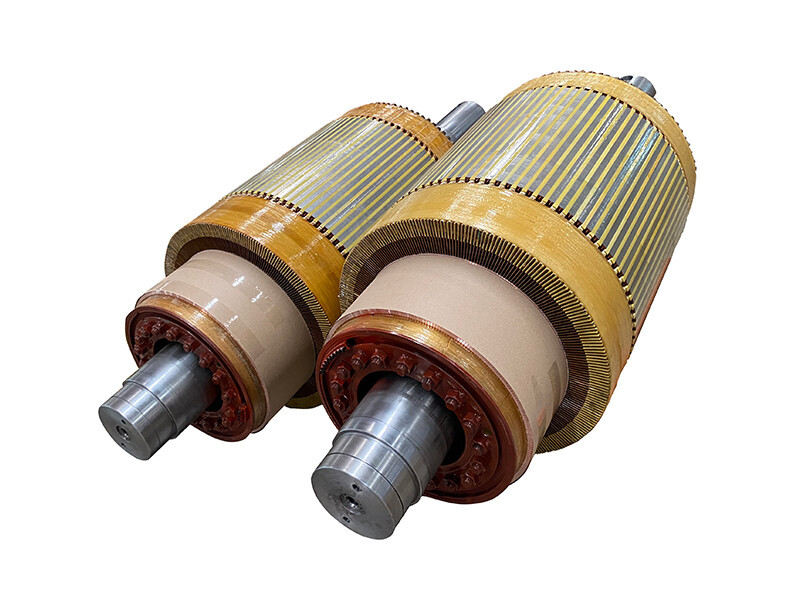

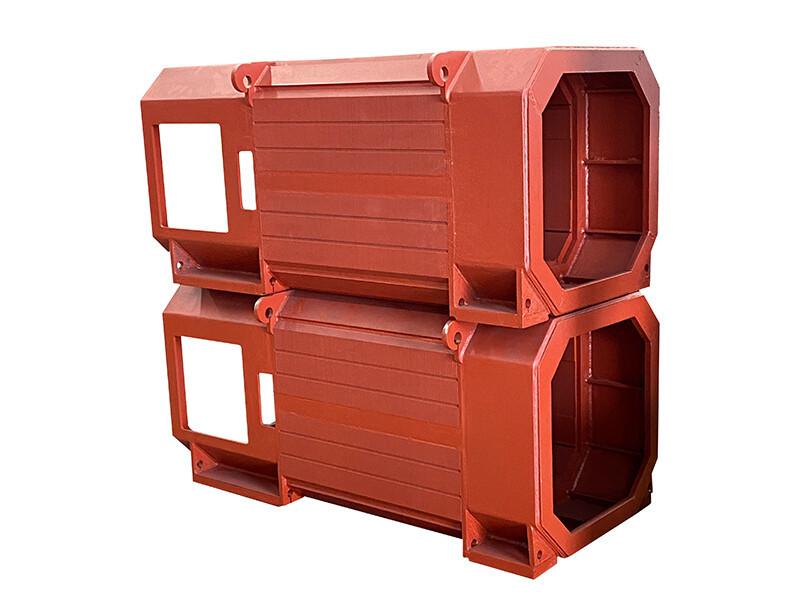

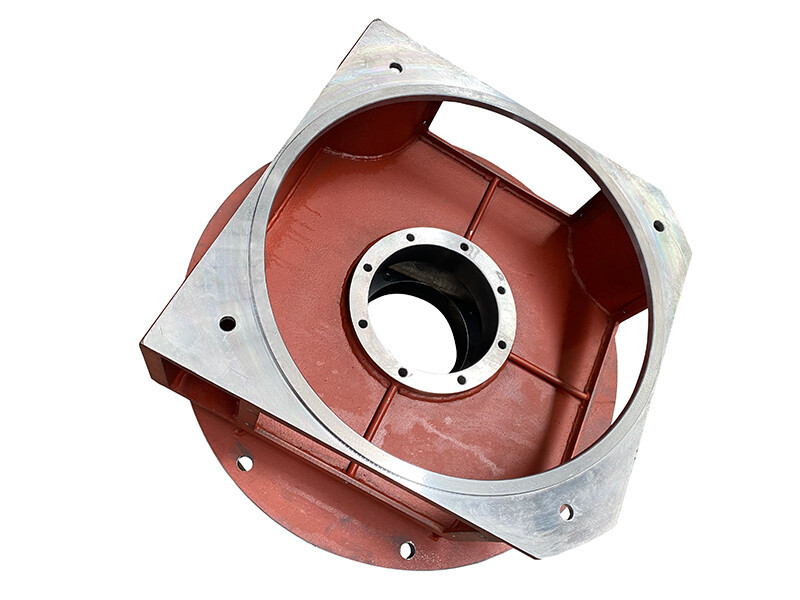

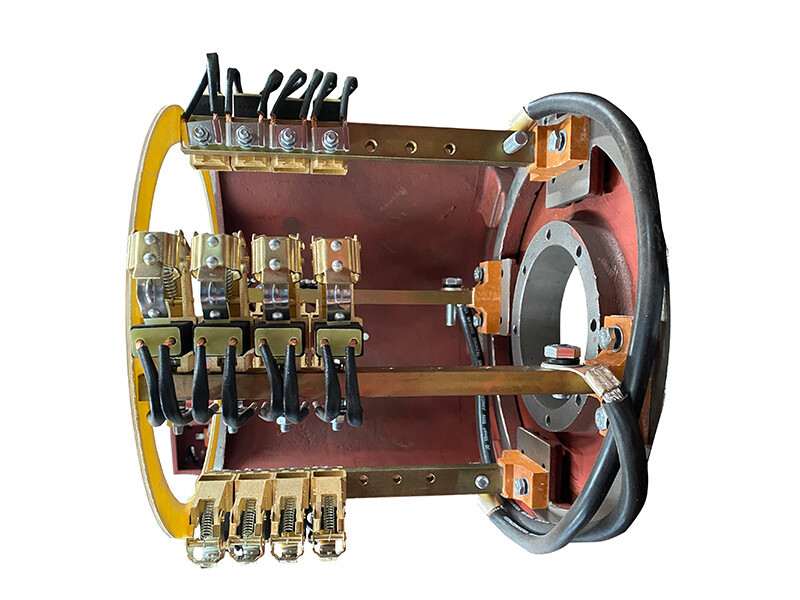

A DC motor mainly consists of a stator and an armature (also known as a rotor). The stator includes a base, main magnetic pole, commutation pole, brush device, etc. The rotor mainly includes armature core, armature winding, commutator, shaft, and fan.

The mechanical characteristics of a DC motor refer to the motion characteristics of the motor in a mechanical system, including mechanical inertia, load inertia, friction, axial torque, etc. These characteristics will affect the changes in motor speed and torque, thereby affecting the performance of the entire system.

The advantages and disadvantages of Z4 series ip23 motor compared with AC motors

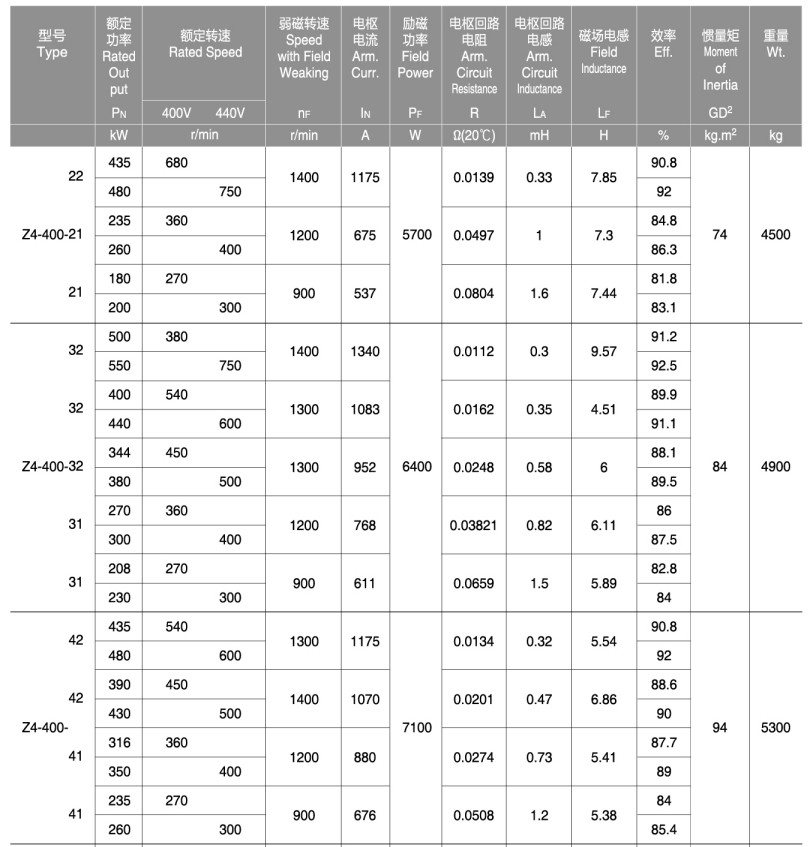

Technical parameters

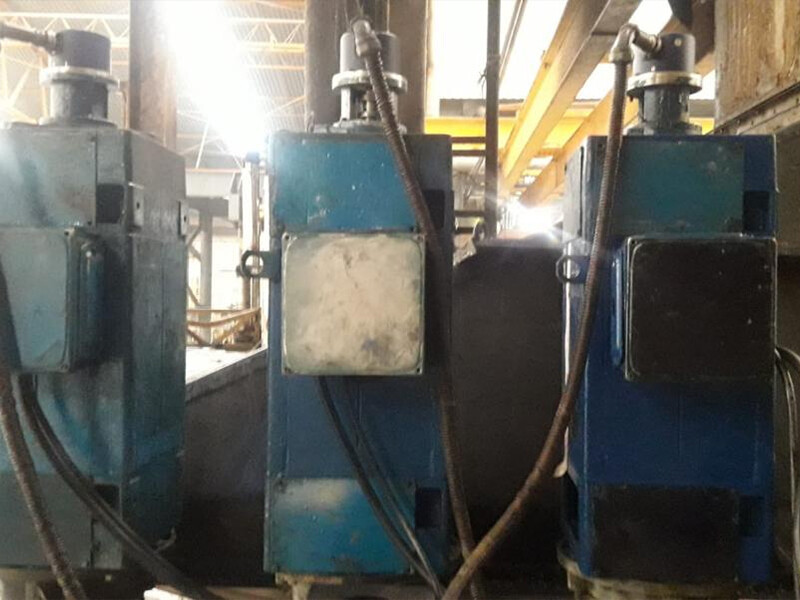

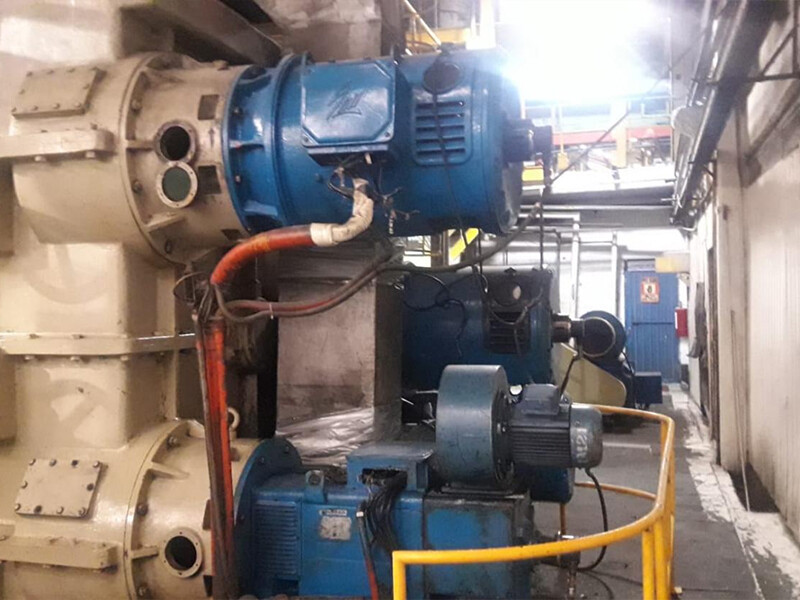

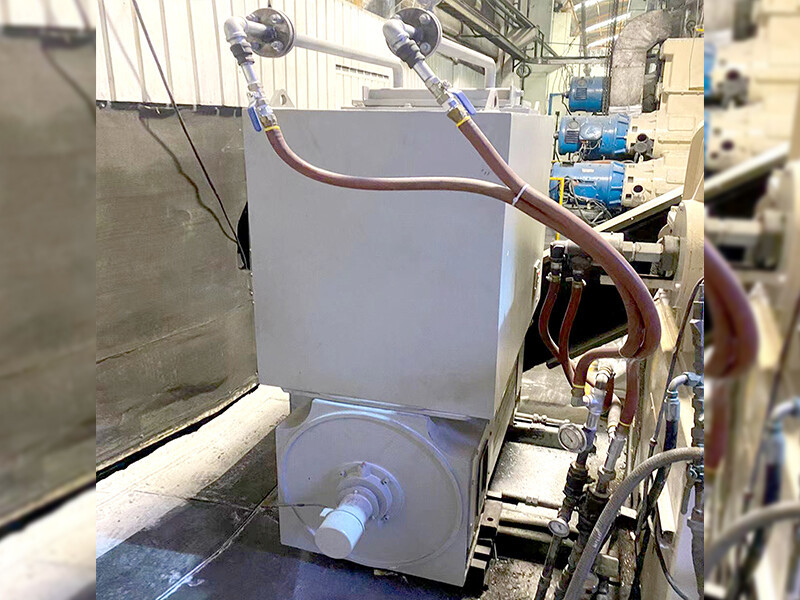

Application

FAQ

1. Are DC motors still used ?

Although AC motors account for the majority in both domestic and international motor markets and practical factory applications, in terms of procurement cost, maintenance, and service life of AC motors, they are generally superior to DC motors. However, DC motors have their own significant advantages, such as wide speed regulation range, strong overload capacity, and large starting torque. Although they have certain drawbacks, they are still widely used in industrial fields that require speed regulation under heavy loads, such as steel rolling, injection molding, papermaking, and other industries.

2. What is the most common DC motor ?

In the field of household appliances, the most common is small brushless DC motors.

In the field of heavy industry machinery manufacturing, the most common ones are medium and large DC motors with brushes.

In the sugar mill industry, the most common type is the brushed ZYZJ series dedicated DC motor.

Different industries and load devices use different DC motors.

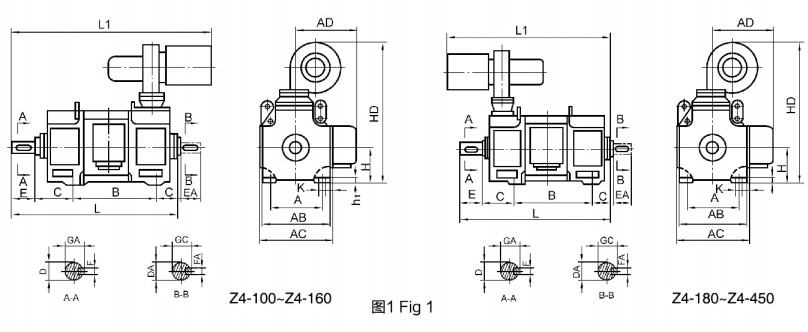

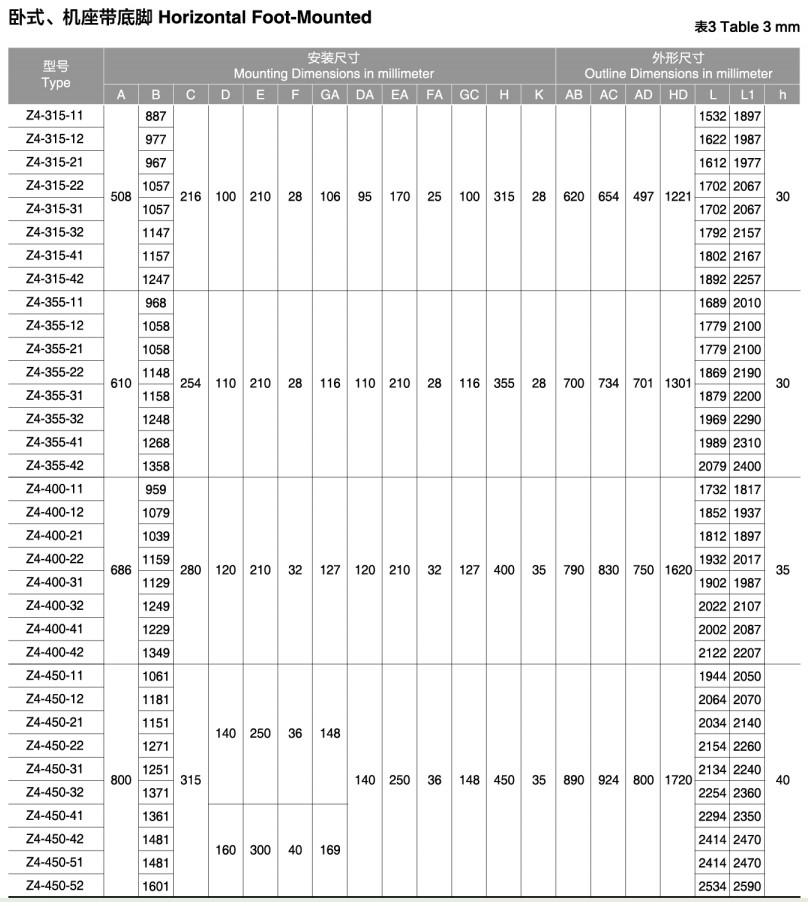

Dimensions and Parts’ codes
